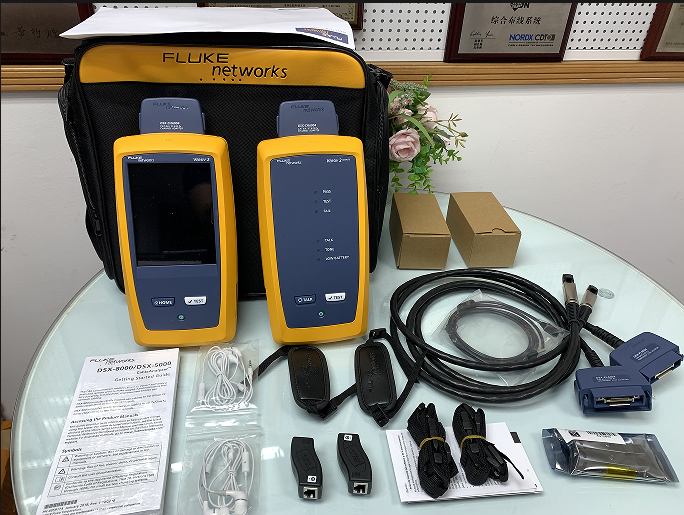

DSX CableAnalyzer Series Specifications
Cable Types
Shielded and unshielded
pair LAN cabling
TIA Cat 3, 4, 5, 5e, 6, 6A, 8: 100 ¦¸ ISO/IEC Class C, D, E, EA, F, FA and I/II: 100 ¦¸ and 120 ¦¸
Standard Link Interface Adapters
Permanent link adapters
Plug type: shielded RJ45
Optional Plug type: ARJ45/GG45
Channel Adapters
Jack type: shielded RJ45
Optional Jack type: Tera, GG45/ARJ45
Test Standards
TIA
Cat 3, 4, 5, 5e, 6, 6A, 8 per TIA 568 Series
ISO/IEC
Class C, D, E, EA, F, FA, I/II certification per ISO/IEC 11801 Series
Maximum frequency
DSX-8000: 2000 MHz; DSX-5000 1000 MHz
General Specifications
Autotest Time
DSX-8000: Full 2-way Autotest of Cat 5e or 6/Class D or E: 7 seconds Full 2-way Autotest of Cat 6A/Class EA: 8 seconds Full 2-way Autotest of
Cat 8: 16 seconds
DSX-5000: Full 2-way Autotest of Cat 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Cat 6A/Class EA: 10 seconds
Support test parameters (The selected test
standard determines the test parameters
and the frequency range of the tests)
Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to
crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End
Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
Input protection
Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display
5.7 in LCD display with a projected capacitance touchscreen
Case
High impact plastic with show absorbing overmold
Dimensions
Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight
Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg)
Main unit and remote
Lithium ion battery pack, 7.2 V
Typical battery life
8 hours
Charge time*
Tester off: 4 hours to charge from 10 % capacity to 90 % capacity
Languages supported
English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration
Service center calibration period is 1 year
Integrated Wi-Fi
Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
