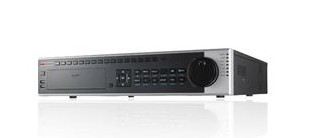

Product Show
|
|
|
Detail Info |
PEKI
Audio Input |
Video Compression: |
H.264 |
Analog Video Input: |
16-ch |
PAL/NTSC Adaptive: |
Support |
IP Video Input: |
32-ch |
Video Input Interface: |
BNC (1.0 Vp-p, 75次) |
Composite Video Input: |
Up to 32-ch (Analog video + IP video ) |
Audio Compression: |
OggVorbis |
Audio Input: |
16-ch |
Audio Input Interface: |
Audio 1-4: RCA (2.0 Vp-p,1 k次) Audio 5-8: DB26 connector |
Two-way Audio: |
1-ch RCA(2.0Vp-p, 1k次) | |
Video/Audio Output |
VGA Output: |
1-ch, resolution: 1920℅1080P/60Hz,1600℅1200/60Hz,1280℅1024/60Hz, 1280℅720/60Hz, 1024℅768/60Hz
|
CVBS Output: |
1-ch, BNC (1.0 Vp-p, 75 次), resolution: PAL: 704 ℅ 576, NTSC: 704 ℅ 480 |
HDMI Output: |
1-ch, resolution: 1920 ℅ 1080P / 60 Hz , 1920 ℅ 1080P / 50 Hz, 1600 ℅ 1200 / 60 Hz, 1280 ℅ 1024 / 60 Hz, 1280 ℅ 720 / 60 Hz, 1024 ℅ 768 / 60 Hz |
Recording resolution: |
4CIF/2CIF/CIF/QCIF |
Video Spot Output: |
1-ch, BNC(1.0Vp-p, 75次) |
Video Loop Output: |
Optional |
Frame Rate: |
25fps (P) / 30fps (N) |
Video Bit Rate: |
32 Kbps-8192 Kbps, or user defined (Max. 8192 Kbps) |
Stream Type: |
Video/Video&Audio |
Audio Output: |
2-ch BNC(Linear electrical level, 600次) |
Audio Bit Rate: |
16kbps |
Dual Stream: |
Support |
Playback Resolution: |
5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF |
Synchronous Playback: |
16-ch | |
Hard Disk Driver |
Interface Type: |
8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs |
Capacity: |
Up to 4TB capacity for each disk |
e-SATA Interface: |
1 eSATA interface | |
External Interface |
Network Interface: |
1 RJ45 10M/100M/1000M adaptive Ethernet Interface |
USB Interface: |
2 USB 2.0 Interfaces |
Serial Interface: |
1 RJ45 RS-232 interface; 1 RS-485 interface; 1 RS-485 keyboard interface |
Alarm Input: |
16-ch |
Alarm Output: |
4-ch | |
General |
Power Supply: |
100~240 VAC, 6.3A, 50~60Hz |
Consumption: |
≒ 45 W |
Working Temperature: |
-10 ∼C ~ +55 ∼C |
Working Humidity: |
10% ~ 90% |
Chassis: |
19-inch rack-mounted 2U chassis |
Dimensions: |
445 ℅ 470 ℅ 90 mm (W ℅ D ℅ H) |
Weight: |
≒ 8kg (without hard disk or DVD-R/W) | | |
|
|
