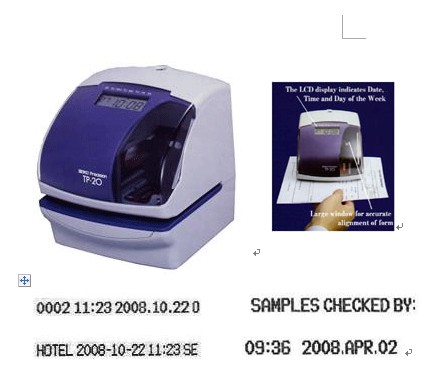

Time Stamp TP-20 for printing time, date, number and comments

Time Stamp TP-20 is a machine to print date, time, comment, and/or number on documents.  When you insert a paper into TP-20, it will print such information on the paper.  TP-20 can be useful for various applications with its versatile functions and various printing patterns.  TP-20 is an ideal choice for your needs!

Example;

 - Time attendance at factory, shop, and office.

 - Recording IN/OUT, or Start/End time

 - Ticketing (Validation)

[1] Features

 - Large window for accurate alignment of form

 - Long printing length: maximum 48mm

 - Numbering: up to 8 digits & 9 repeats

 - Customized comment printing (Up to 3 printing lines)

 - Adjustable print position : 0 - 30mm from the edge of the paper

 - Automatic daylight saving time adjustment
 - Mechanical Key Lock and Password for security

 - Optional function such as;
     Relay contact for external chimes
     Buzzer
     Secondary clock synchronization

Printing Length

Adjustable Area

[2] Printing Formats

You can choose a suitable print format for your needs from various choices.

 - Time

      Hour: 12 or 24 hrs
      Minute: regular minute, 1/10, 1/100 or 5/100 of hour
      Second

 - Date
      Year: 2 or 4 digits
      Month
      Date
      Day of the Week

 - Preset Comments (13 types, example: "RCVD", "SENT", "PAID", and so on.)

 - Number (Maximum 8 digits and Repeatable up to 9 times)

 - Customized comment

Imprint Formats

[3] General Specifications

 - Clock: Digital (Date and Time)

 - Accuracy: monthly accuracy +/- 15 sec (at ordinary temperature)

 - Printing Color: Mono color (Black)
 - Back-up Battery for 3 years setting protection
 - Power: 220-240VAC, 50/60Hz

 - Dimension and Weight:  W156 x D181 x H177 (mm), approx. 1.8 kg
 - Designed and Developed by SEIKO Precision Inc. (Japan)
 - Assembly: SEIKO PRECISION (Thailand) Co., Ltd.

[4] Accessories and Option

 - Ink Ribbon: TP-1051N (Installed)
 - Option Battery: QR-12004N (Sold separately) for punching during power failure
 - Option PCB board for optional function: TP-2080N

Print color: Easy-to-read black (accessory)

Optional Battery QR-12004N: 24 hours or up to 100 punches (sold separately)
